NOVATICS

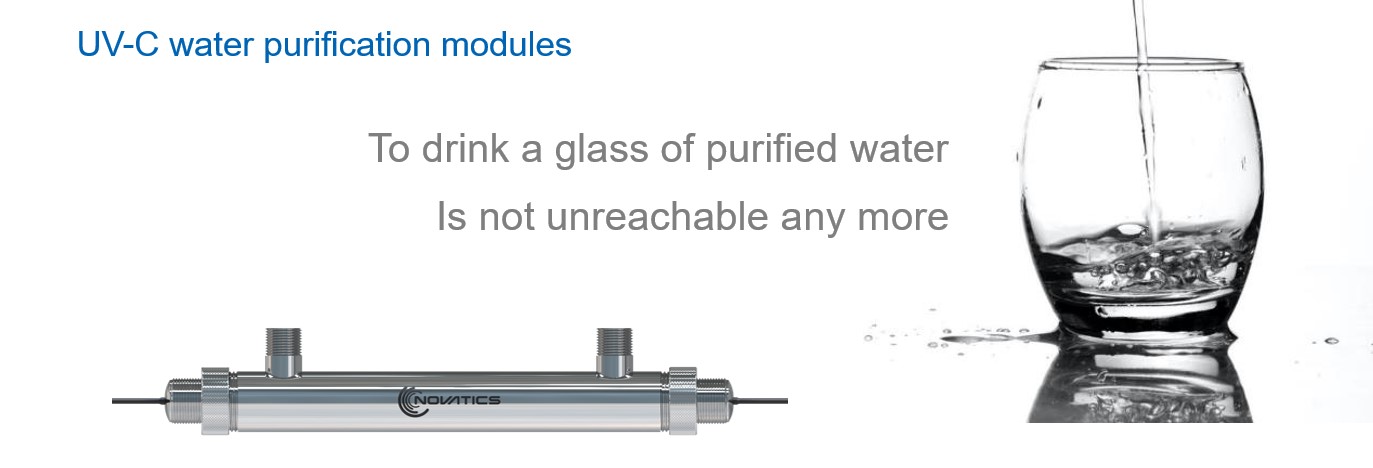

UV-C LED
Water Sterilizer

Why is disinfection necessary？

Products Introduction

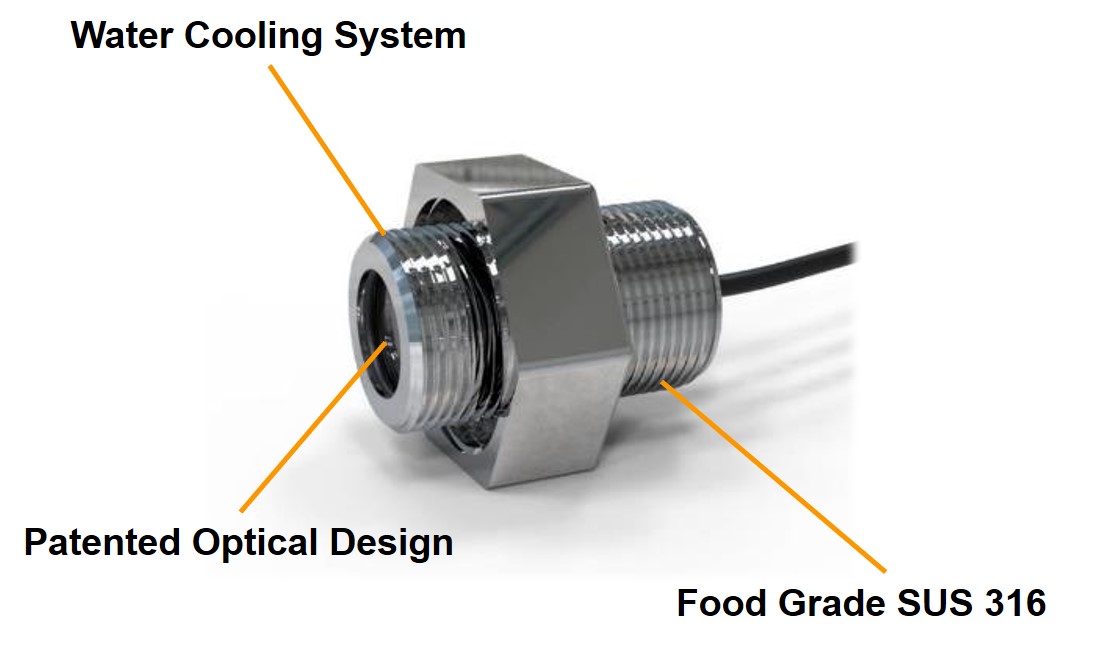

Features

UVC LED：Mercury-Free and Ozone-Free
Patented Optical Design： Comprehensive Sterilization
Direct Water Cooling System：Extends LED Lifespan
Made of 316 Stainless Steel：Suitable for Food Factories

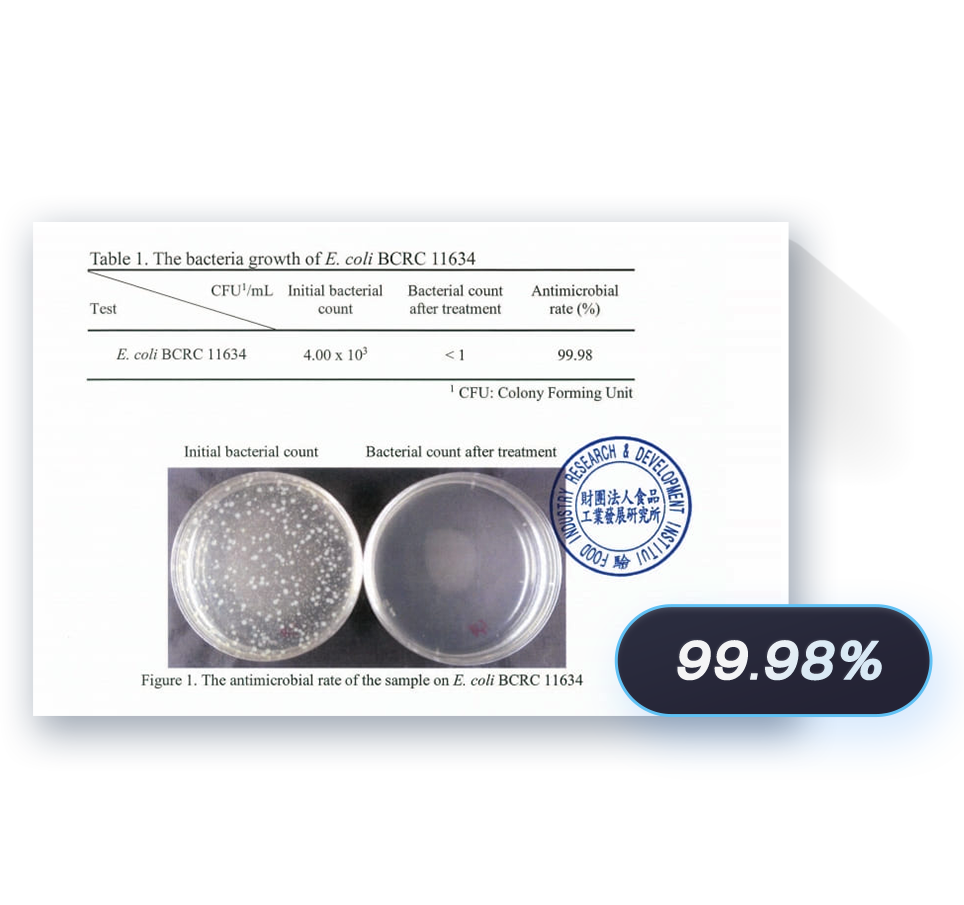

Proven Antimicrobial Efficacy：99.98%

Max Flow	15LPM / 4GPM / 1m³/hr
Power Consumption	10 Watts
Overall Dimensions	309mm
Inlet Diameter	1/2 Inch
Material	SUS 316

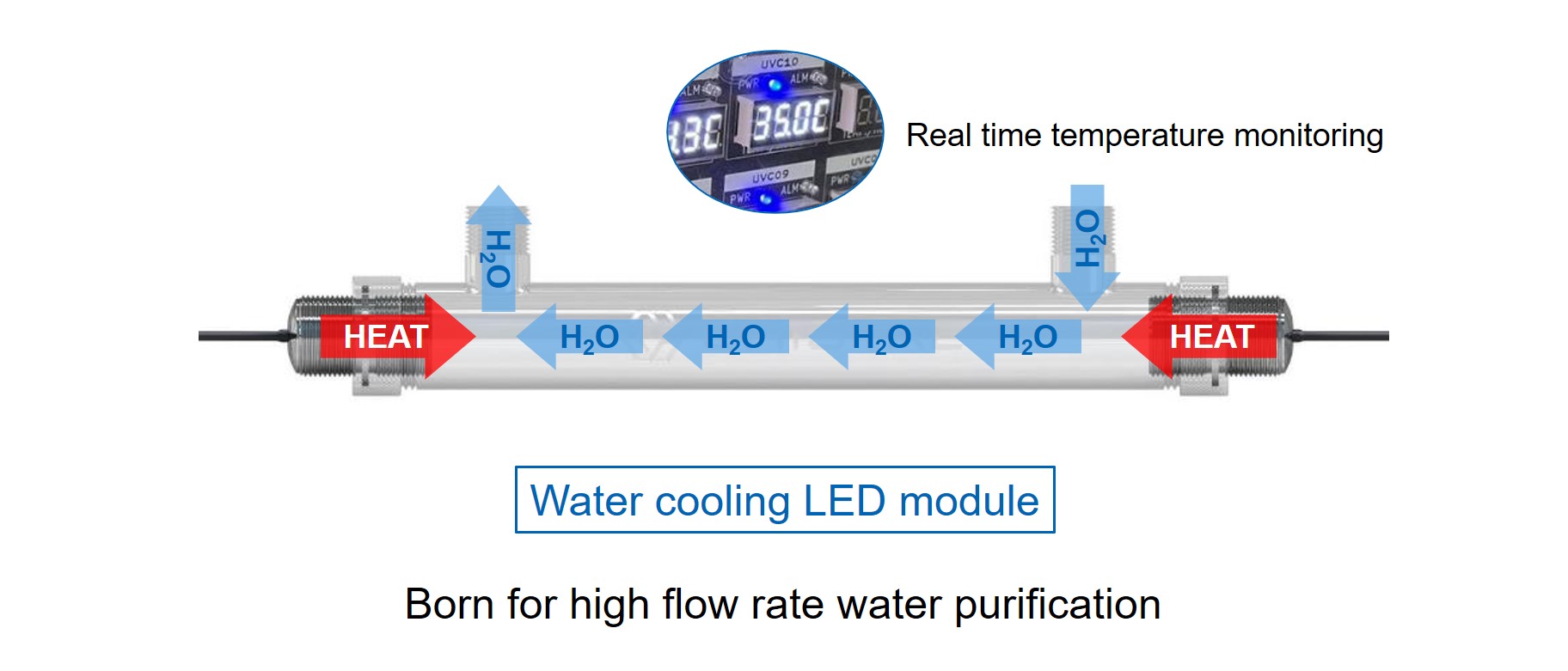

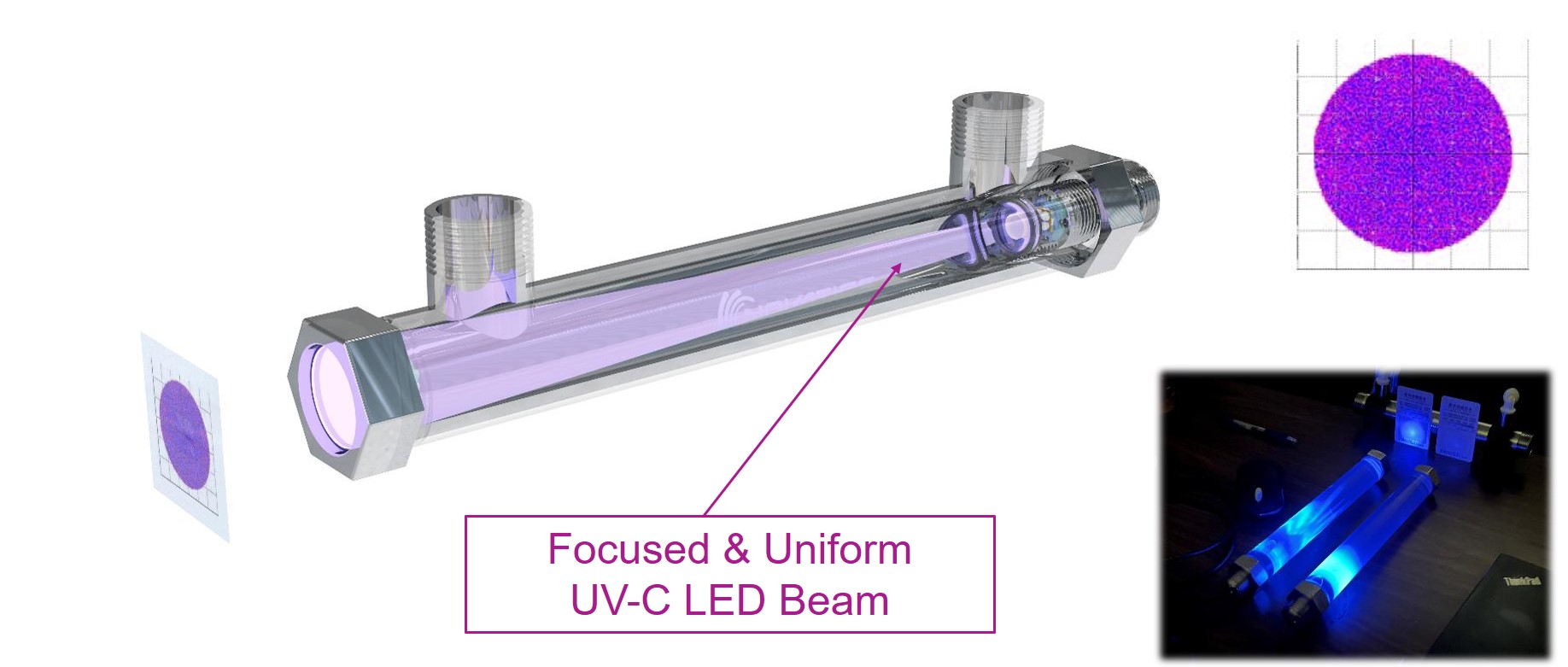

Operating Mode

Advantages

High-flow Configuration

Compact Size

Energy-Efficient Module

Environmentally Friendly Product

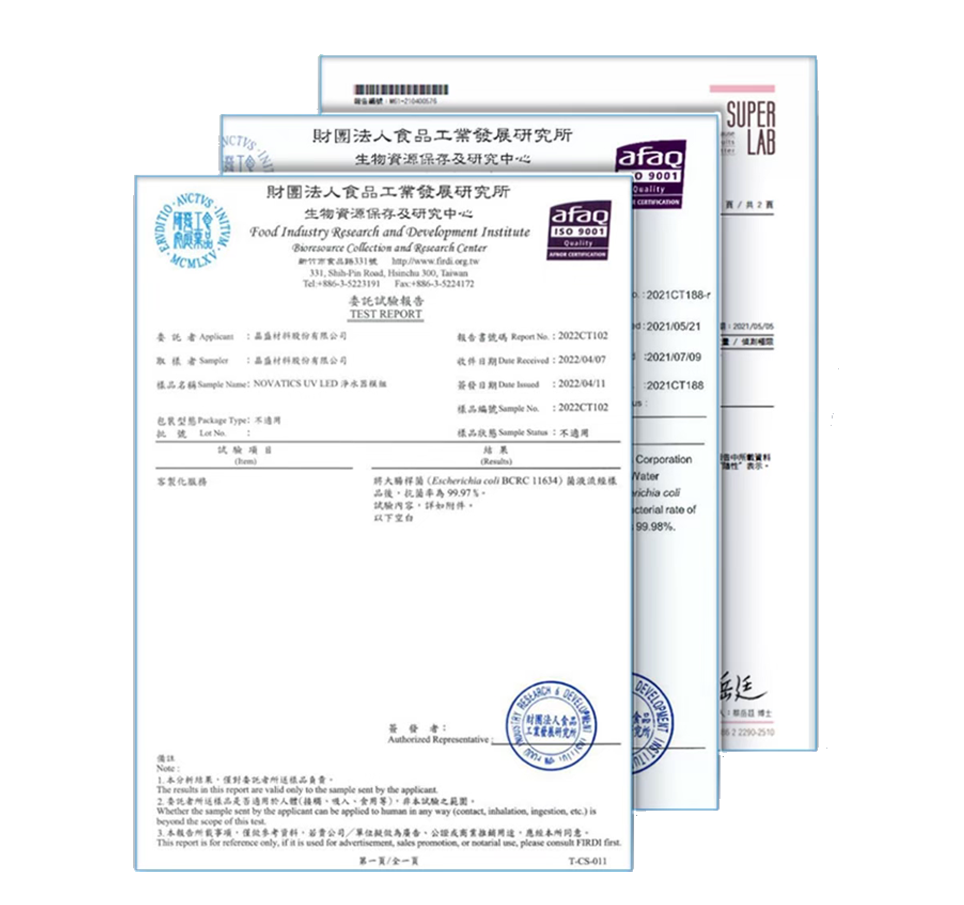

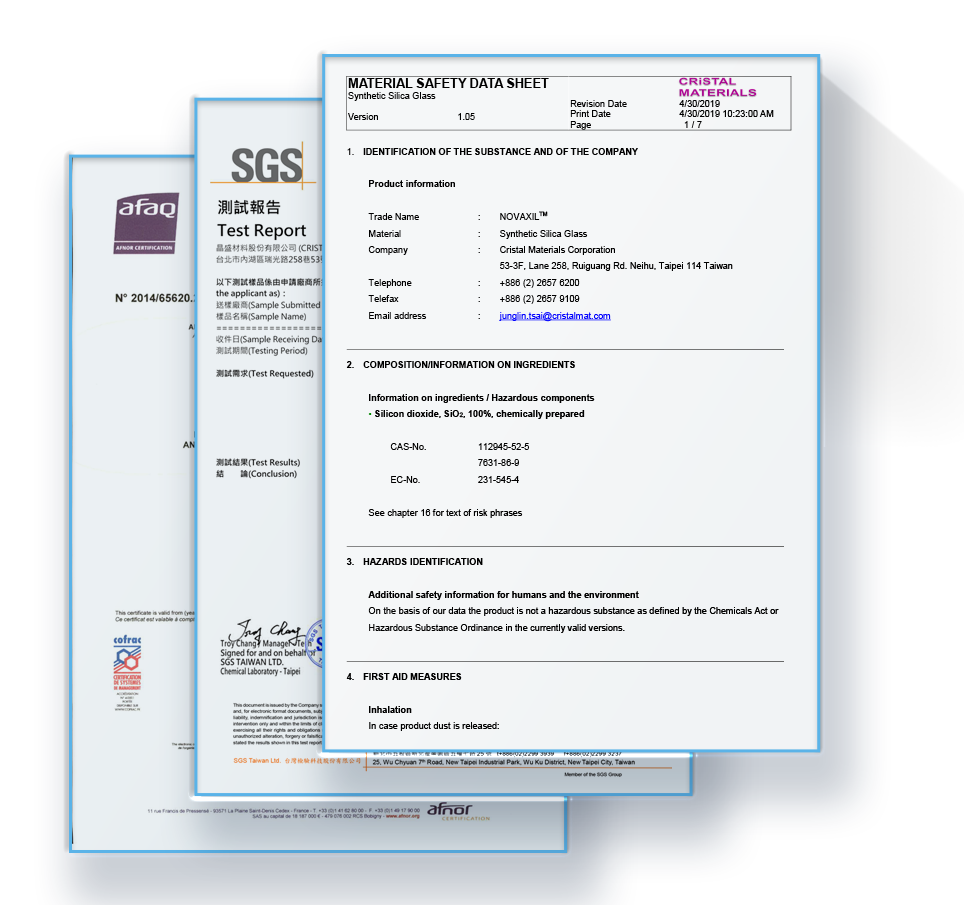

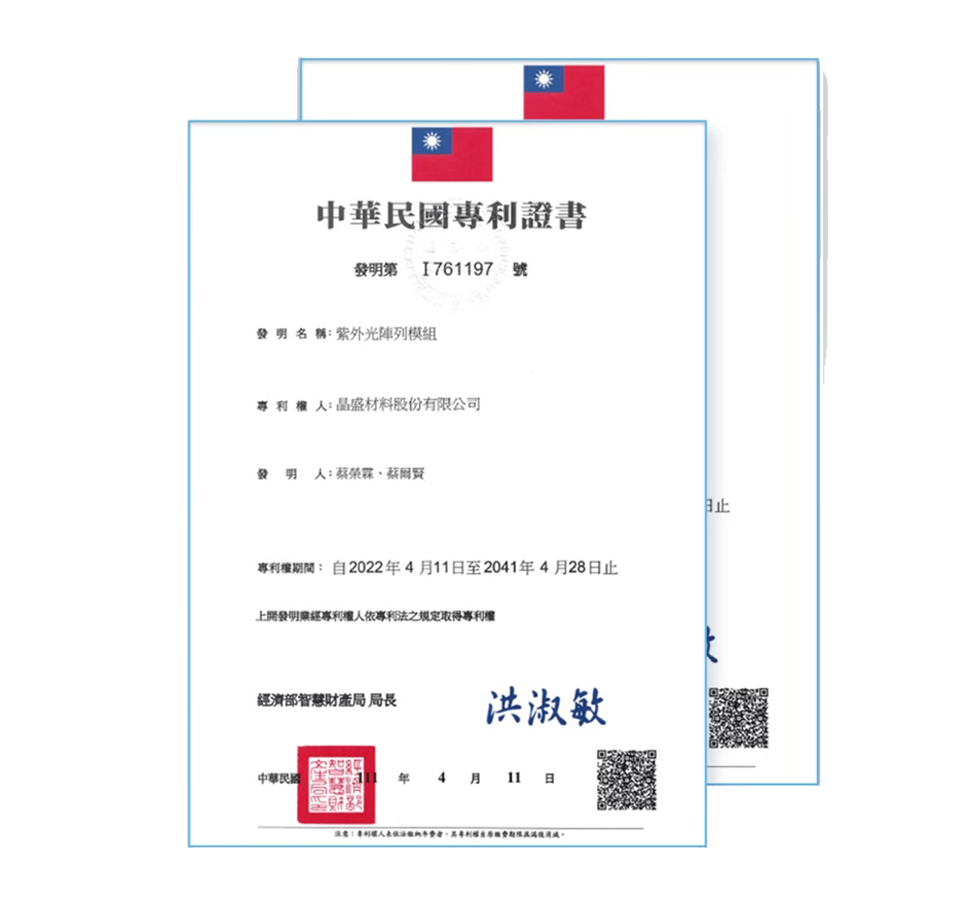

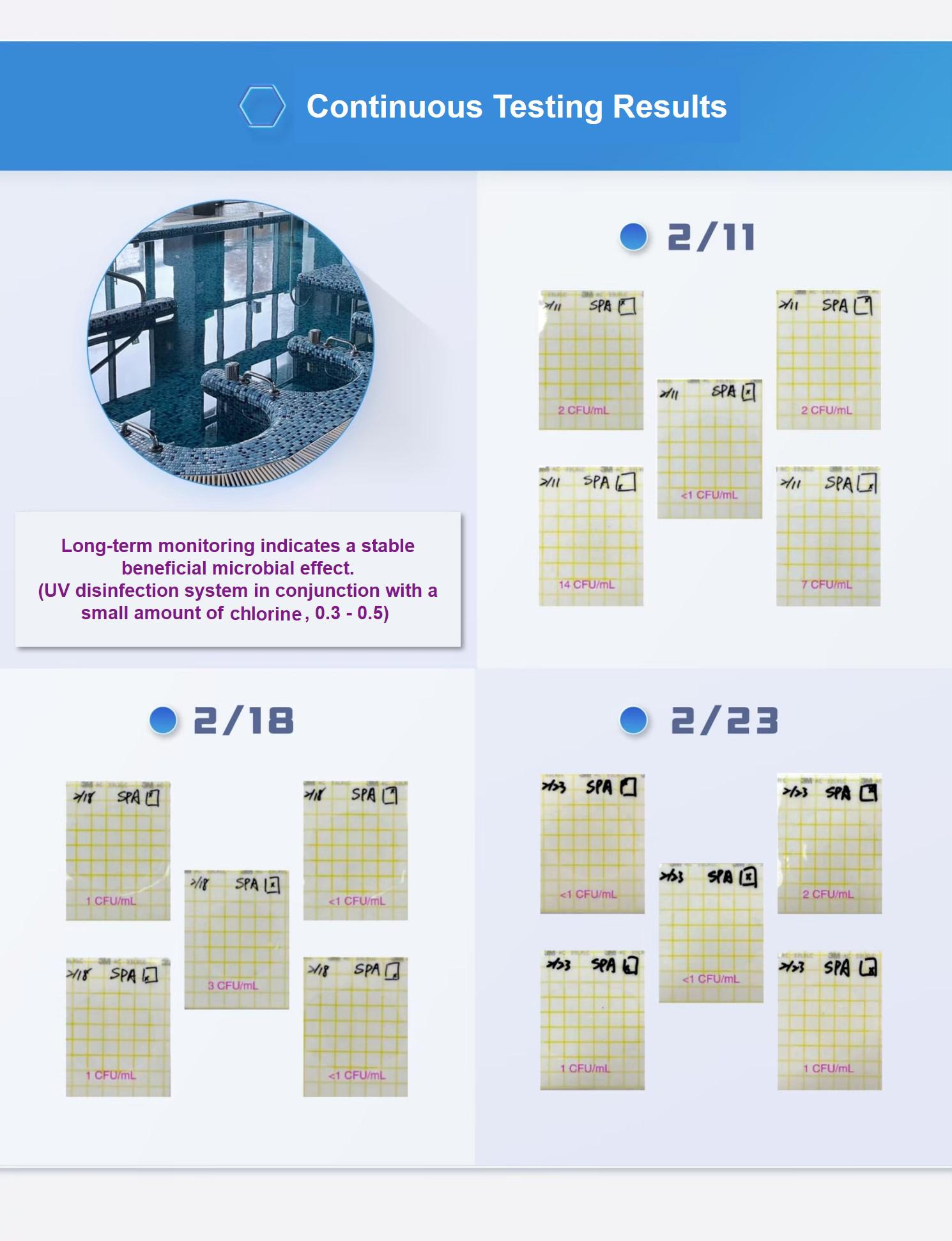

Inspection Report, Patents, and Certification
of Sterilization Effect by Food Research Institute.

Product Specifications

WS Manual-Chinese

WS Manual-English

WS Detailed Product Description

NOVATICS WS G Series

NOVATICS WS G Series	WS G2	WS G4
Max Flow Rate	2 GPM	4 GPM
LED Wavelength	275 nm
LED Lifespan	10,000hrs
Inlet Diameter	½ inch male
Input Voltage	100 – 240 VAC
System Power	5 W	10 W
System Weight	1.5 kg	1.8 kg
Applicable Temperature	15 – 35 ℃

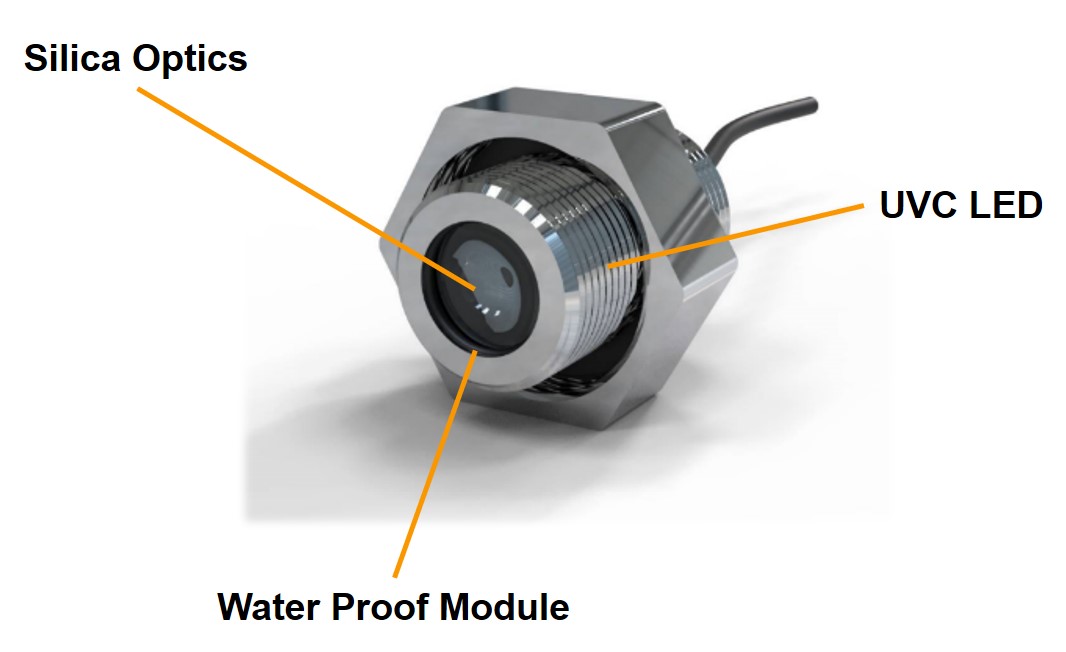

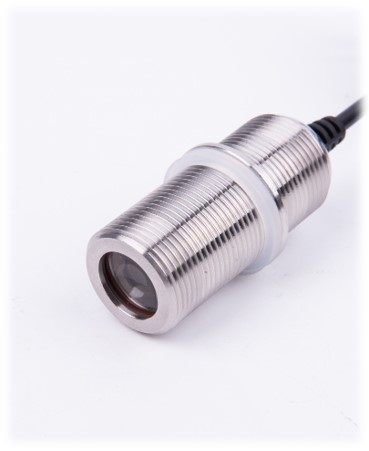

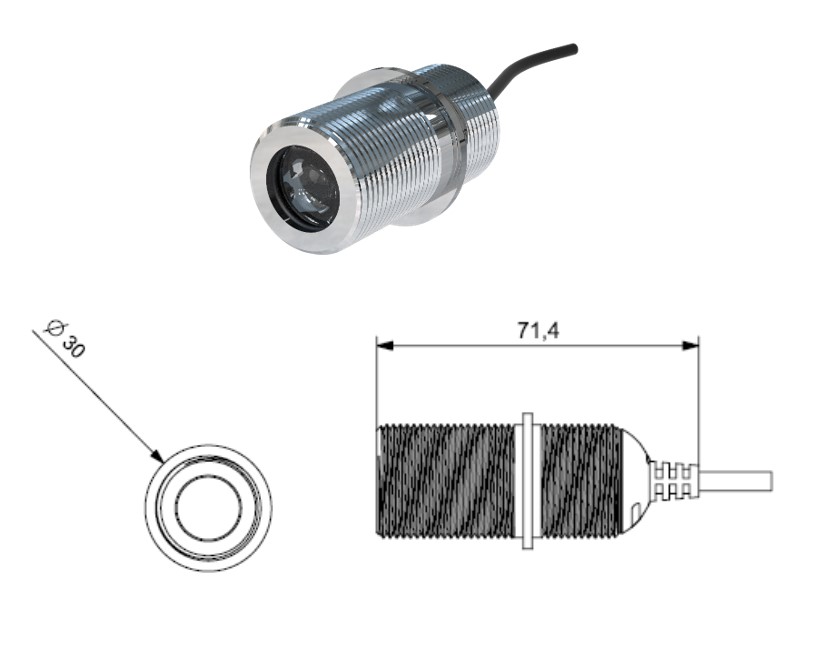

WS CORE

NOVATICS WS CORE
Max Flow Rate	2 GPM
Power	5 W
Dimension	71.4 mm
Lifetime	10,000 hrs+

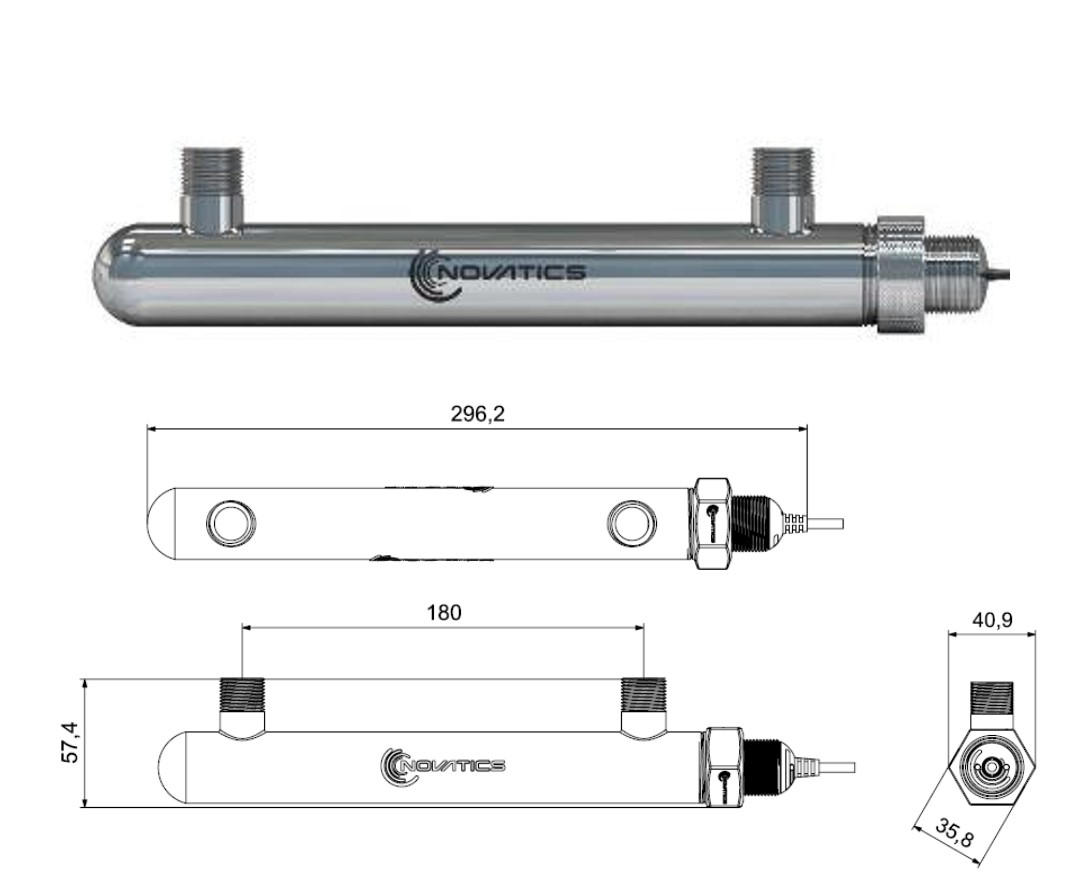

WS G2

NOVATICS WS G2
Max Flow Rate	2 GPM
Power	5 W
Dimension	296 mm
Inlet Diameter	½ in

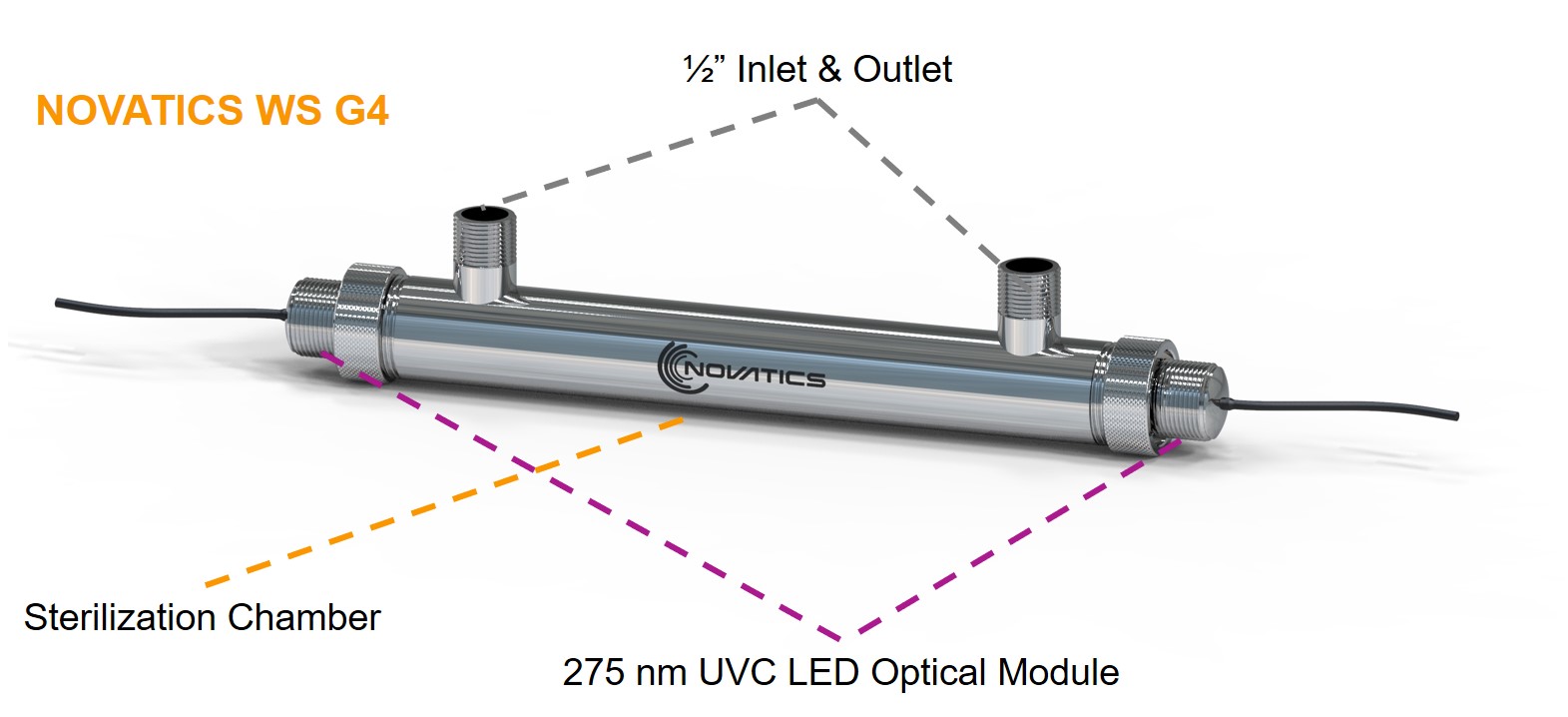

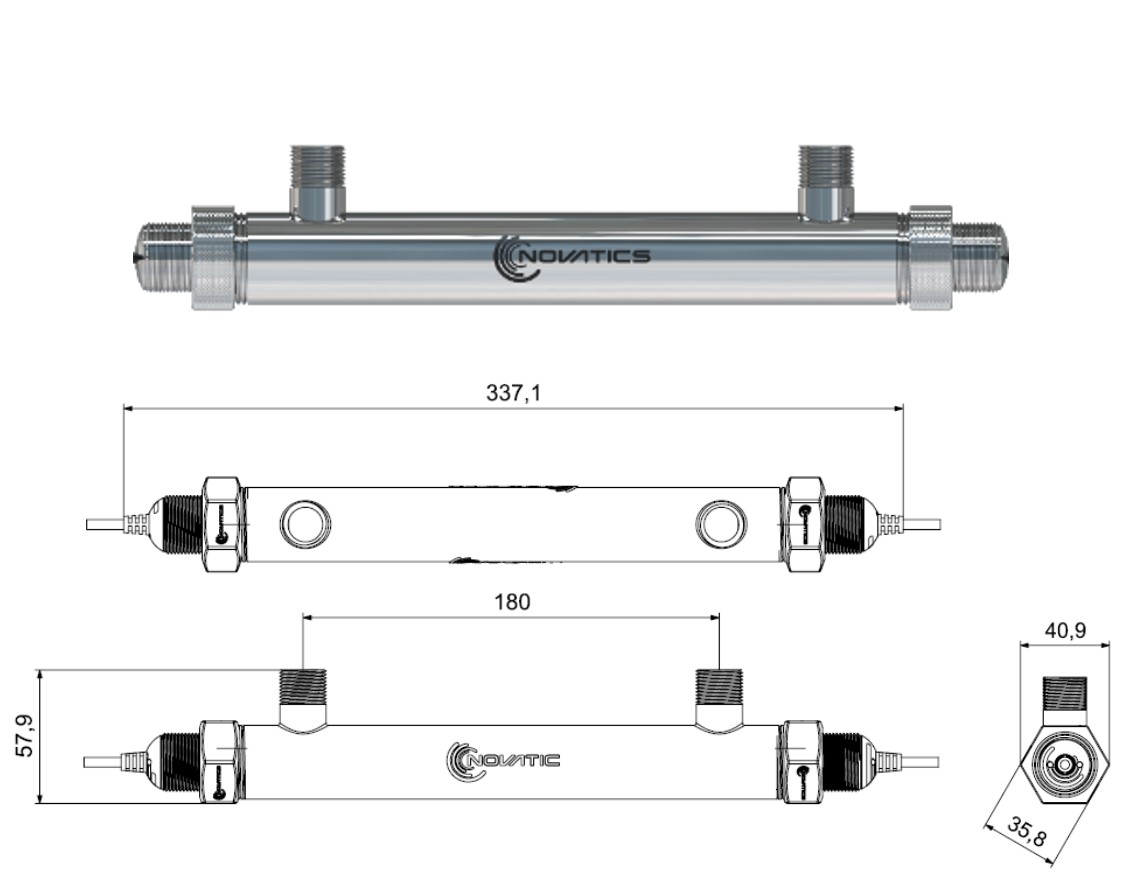

WS G4

NOVATICS WS G4
Max Flow Rate	4 GPM
Power	10 W
Dimension	337 mm
Inlet Diameter	½ in

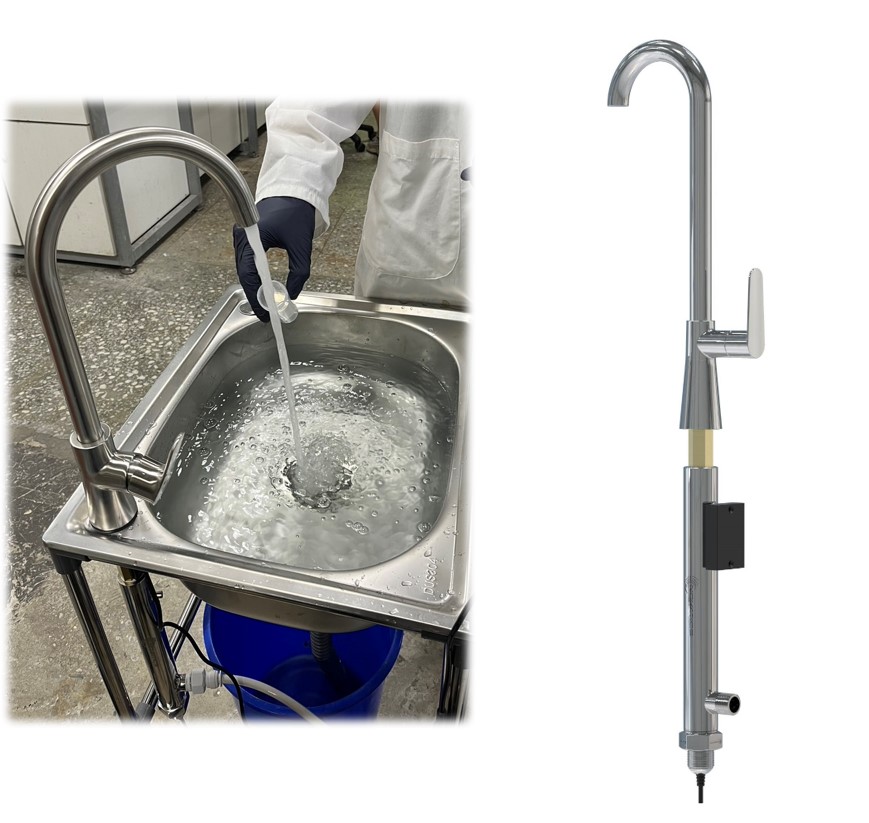

WS-F Faucet

NOVATICS WS-F Faucet
Max Flow Rate	2 GPM
Power	5 W
Dimension	60 mm
Inlet Diameter	½ in

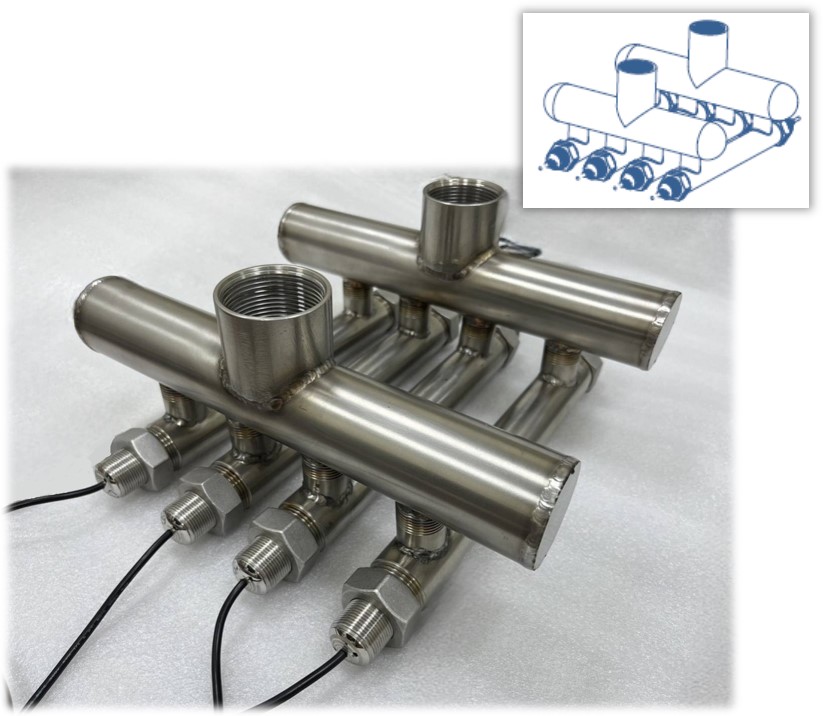

WS T5 Matrix

NOVATICS WS T5 Matrix
Max Flow Rate	20 GPM
Power	40 W
Height	15 cm
Width	30 cm
Depth	30 cm
Inlet Diameter	1½ in
Control Panel	Standard
Power Supply	Standard

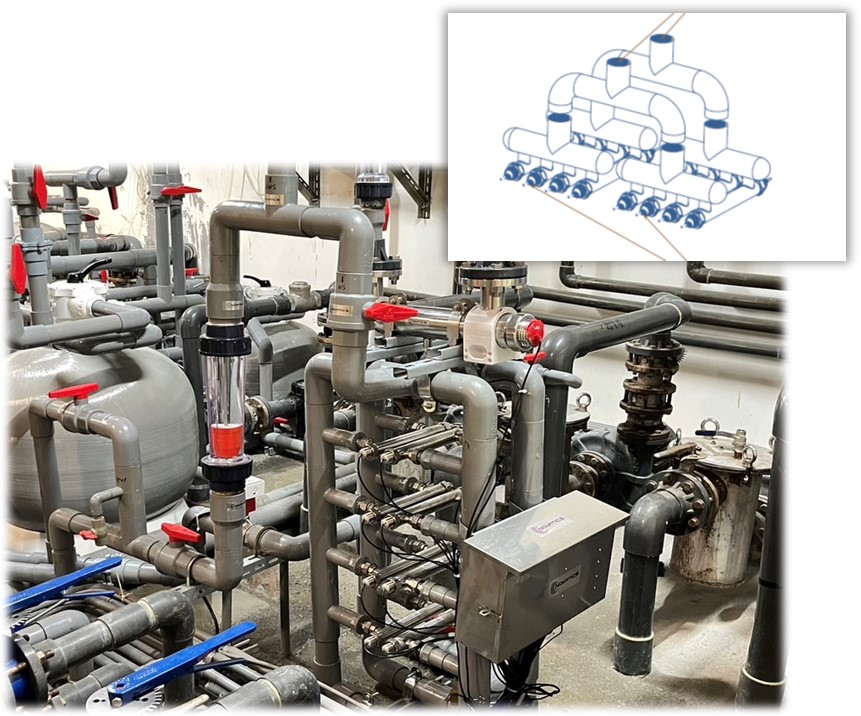

WS T10 Matrix

NOVATICS WS T10 Matrix
Max Flow Rate	40 GPM
Power	80 W
Height	15 cm
Width	75 cm
Depth	30 cm
Inlet Diameter	1½ in
Control Panel	Standard
Power Supply	Standard

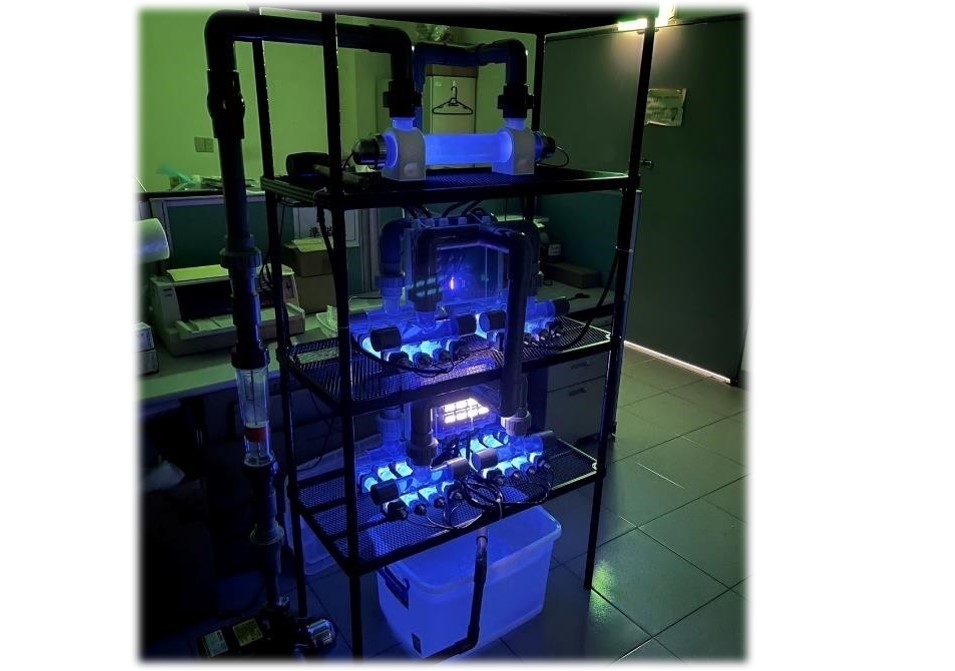

WS T25 Matrix

NOVATICS WS T25 Matrix
Max Flow Rate	100 GPM
Power	210 W
Height	180 cm
Width	90 cm
Depth	45 cm
Inlet Diameter	2 in
Control Panel	Standard
Power Supply	Standard

Products Application

Beverage Shops - Using disinfected water to provide consumers with added peace of mind when consuming beverages.

Ice Manufacturing Facilities - Utilizing disinfected raw water to produce ice cubes, minimizing the risk of potential bacterial contamination in the water used.

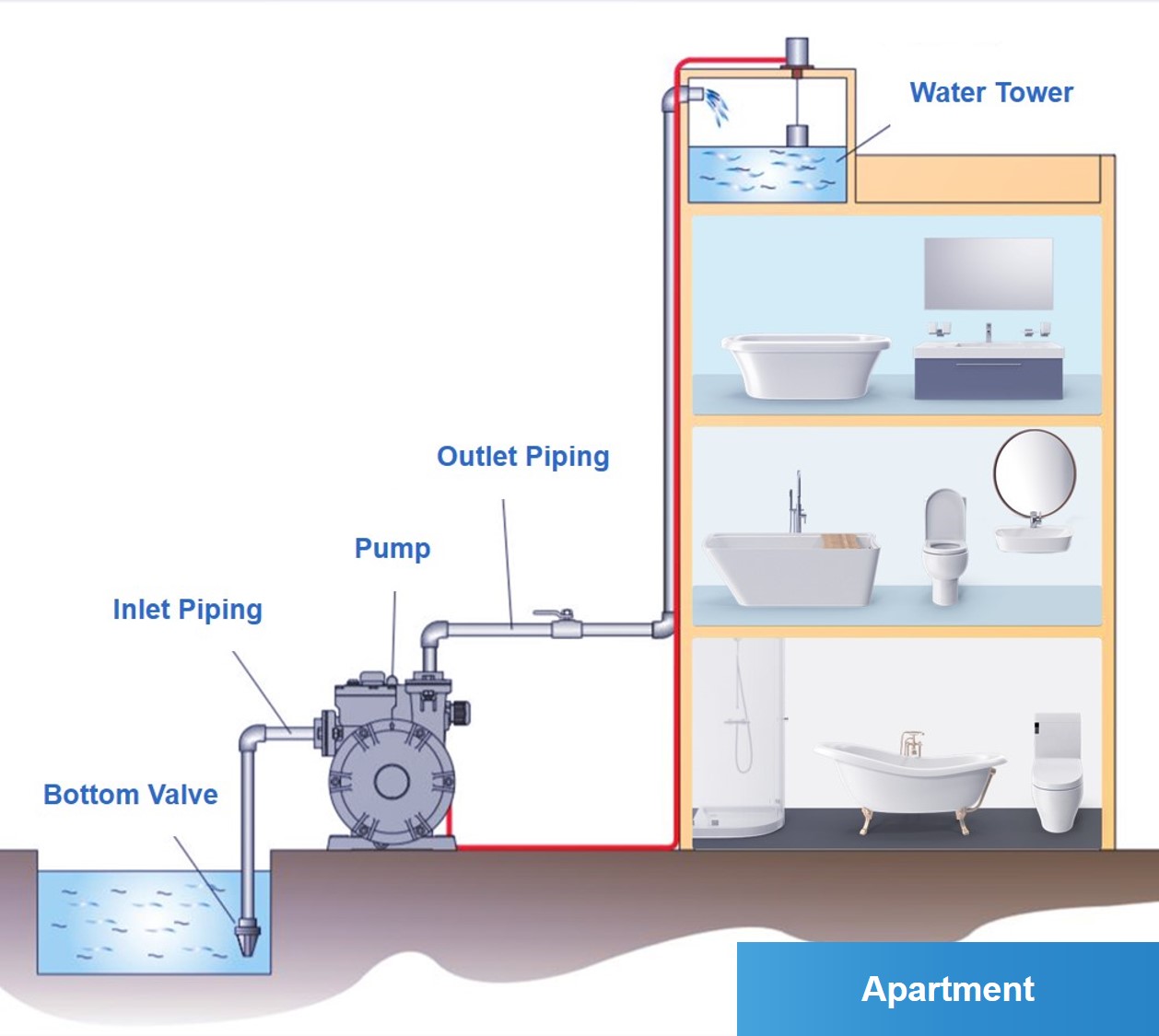

Apartment Building - Utilizes a water disinfection system to recirculate clean water to each residential unit.。

Apartment BuildingUtilizes a water disinfection system to recirculate clean water to each residential unit.
Beverage ShopsUsing disinfected water to provide consumers with added peace of mind when consuming beverages.
Ice Manufacturing FacilitiesUtilizing disinfected raw water to produce ice cubes, minimizing the risk of potential bacterial contamination in the water used.
